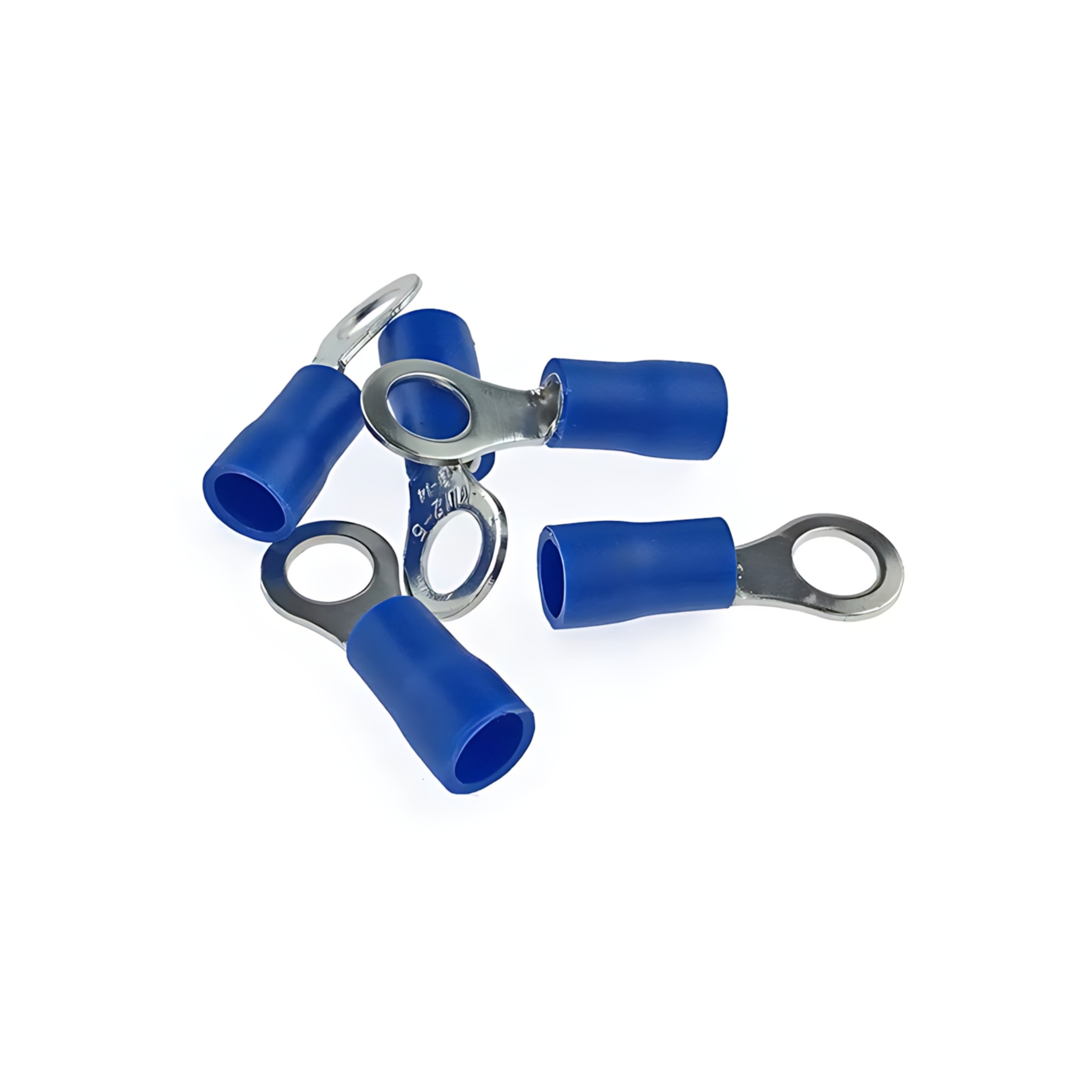

The RV 2-6 is a blue, vinyl-insulated ring terminal designed for 16-14 AWG wire, It features a copper, tin-plated body with a
(1/4 inch) stud hole. Suitable for a maximum of 27A, it is commonly used to create secure, vibration-resistant connections for stranded wires.
Key Technical Specifications:
Model: RV 2-6 (or RV2-6/RV2-6-BLUE)
Wire Size: 16-14 AWG /
Stud Size: 1/4 inch /
Material: Copper (tin-plated) with PVC or Vinyl Insulation
Color: Blue
Key Features:
Insulation: Pre-insulated, cold-pressed type.
Design: Ring tongue type for secure connection, preventing wire damage from vibrations.
Color-coded: The blue insulation signifies it is designed for 16-14 AWG wire.
Applications: Industrial, electronic, and automotive, as shown in products
طرف التوصيل الحلقي RV 2-6 أزرق اللون، معزول بالفينيل، ومصمم لأسلاك قياس 16-14 AWG. يتميز بهيكل نحاسي مطلي بالقصدير مع فتحة تثبيت (1/4 بوصة).
مناسب لتيار يصل إلى 27 أمبير، ويُستخدم عادةً لإنشاء توصيلات آمنة ومقاومة للاهتزازات للأسلاك المجدولة.
المواصفات الفنية الرئيسية:
الموديل: RV 2-6 (أو RV2-6/RV2-6-BLUE)
قياس السلك: 16-14 AWG /
قياس فتحة التثبيت: 1/4 بوصة /
المادة: نحاس (مطلي بالقصدير) مع عزل PVC أو فينيل
اللون: أزرق
الميزات الرئيسية:
العزل: معزول مسبقًا، من النوع المضغوط على البارد.
التصميم: تصميم حلقي لساني لتوصيل آمن، يمنع تلف السلك الناتج عن الاهتزازات.
الرمز اللوني: يشير العزل الأزرق إلى أنه مصمم لأسلاك قياس 16-14 AWG.
التطبيقات: الصناعية والإلكترونية والسيارات، كما هو موضح في المنتجات
